The First Time Styles Bit Me

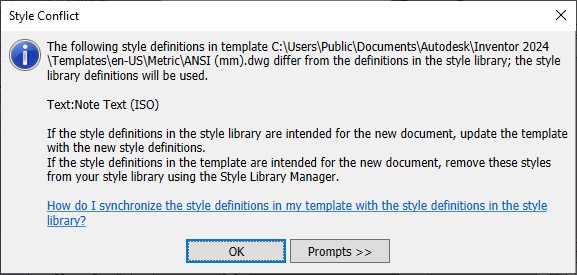

I’ll never forget that sinking feeling the first time I tried to open a new drawing in Inventor and was greeted by the dreaded “Style conflict” dialog box. I’d clicked “New” in the Drawing environment, ready to detail my latest gear assembly, and bam—this ominous message:

The following style definition in template ‘... ANSI (mm).dwg’ differs from the definition in the style library. The style library will be used.

At first, I thought I’d broken something in my template. Then I realized: I didn’t even know what styles really were in Inventor. I was about to embark on a crash course in Templates vs. Style Libraries—complete with a few face‑palm moments along the way.

Templates vs. Style Libraries: What Are They, Really?

Templates in Inventor are like the blank notebooks we used in school—but each page comes with pre‑set margins, title blocks, and line styles. In Inventor, the out‑of‑the‑box templates live in your template folder and are completely empty of geometry, but loaded with everything you need to get started faster.

Style Libraries, on the other hand, are where Inventor stashes all the fine details of how your annotations look: text fonts and sizes, dimension arrow styles, leader line formats, weld symbols—even title block cell formatting lives here. If you poke around in your Project settings (File > Manage > Projects), you’ll see a “Design Data” folder—by default:

C:\Users\Public\Documents\Autodesk\Inventor 2024\Design Data

You will find there a lot of XML files, and these files contain all the necessary information about formatting drawing annotation elements.

Tweaking Styles the “Safe” Way

Warning: directly editing those XML files without an XML IDE is a quick way to break things you didn’t mean to. Instead, I do it this way:

1. Open Inventor and start a brand‑new drawing.

2. Switch to the Manage tab and click Styles Editor in the Styles & Standards panel.

3. In that dialog, tweak the dimension lines, text, title block borders—whatever you need.

4. Hit Save and Close.

…Then comes the million‑dollar question: where did my changes go? The surprising answer is that Inventor squirts them into that drawing file, not into the central library. Cue more head scratching, because the next time you start a drawing (even from your custom template), you’ll see the same style conflict again.

Making Your Changes Stick

Here’s the workflow I swear by now:

1. After editing styles in the Styles Editor, don’t just save and close—hit the Save button right there in the Styles & Standards panel.

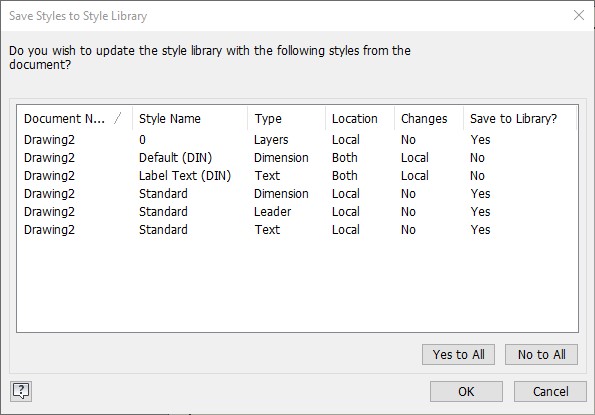

2. A list pops up showing the styles you’ve modified. Check the ones you want to commit to your library, click OK, and fingers crossed that no “Read‑Only” warning appears.

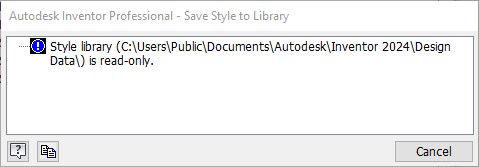

3. If you do see a “Read‑Only” error, navigate to that Design Data folder, right‑click the offending XML files, and clear the Read‑Only attribute. Then repeat the save.

   At this point, your Design Data XML timestamps will update. Now:

4. Save this drawing (with all your carefully tuned styles) as a true Inventor template—say, DIN.idw.

5. Next time you click “New” and pick DIN.idw, voilà—no more style conflict.

Wrapping Up

Styles in Inventor may feel like an unsolvable puzzle at first, but once you understand the template vs. library distinction and learn to push your edits back into the Design Data, it all clicks. Now I roll out new title blocks or dimension styles in minutes, not hours, and never lose my settings again.

For the official deep dive (and screenshots of those dialog boxes), Autodesk’s own article is a great reference: Inventor-Styles

Enjoy those crisp drawings, and remember—styles aren’t the enemy; they’re just another tool in your mechanical‑engineering toolbox.
